85mm Dia, Carbide Inserts, Adjustable Bevel Cutter, 20mm Shank, 3/4" Length
$778.01
Description
Disposable insert router cutter complete with two cutting flutes.

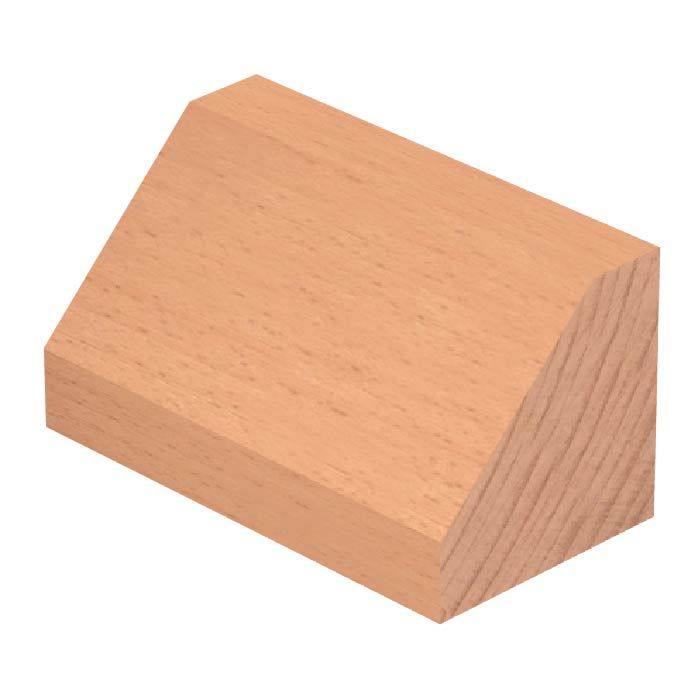

Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made board.
The cutting angle can be adjusted in 7.5° steps by using a notched scale.
Fine adjustment of 1° is also possible. For use on routers and machining centers with CNC control.
| Tool ID | N102R20-45 |
|---|---|
| Brand | Dimar |
| Trade | Industrial |
| Diameter (D) | 85mm |
| Number of Cutters | 2 |
| Shank (d) | 20mm |
| Cutting Length (B) | 40mm |
| Degree (a°) | - 45° till 90° |
| Overall Length (L) | 100mm |
| Tools | CNC Machine |
| Technology | Carbide Inserts |
| Material | Soft Wood, Hard Wood, Melamine, Laminate, Plywood, Chipboards |
| Maximum RPM | 12,000 |
